Axitom

Axitom-5

Fully automatic cut-off machine, designed for maximum user friendliness

Axitom facts

  • Largest cutting table in its class
  • Three different cutting modes
  • Automatic serial cutting
  • Automatic cleaning
  • User-friendly operation
  • Optimized feed for fastest cutting
  • Corrosion-resistant cutting chamber
  • 350 mm (14”) diameter cut-off wheel size

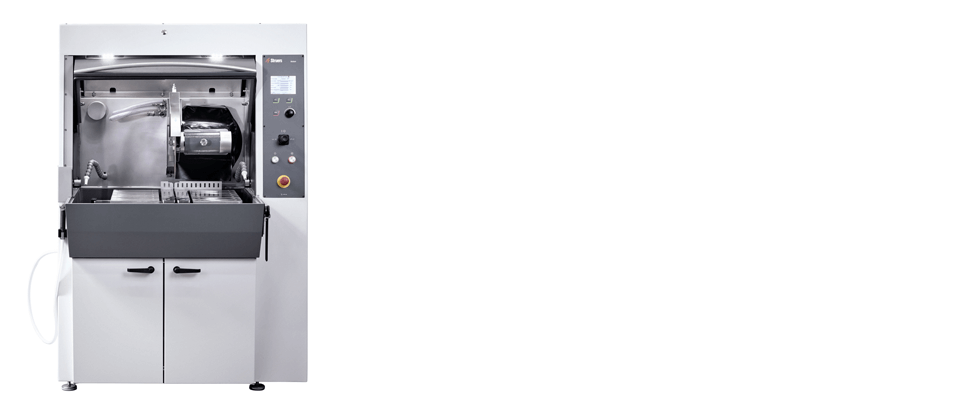

Axitom is a fully automatic cut-off machine designed for maximum user friendliness. Axitom is ideal for the production floor with its very large cutting table and easy-to-use controls. The spacious cutting chamber is equipped with two automatic cutting tables. The X-table for serial cutting of parallel sections and the Y-table for cutting of extra deep workpieces. Cutting parameters such as feed speed, force, and stop positions are easily controlled using the multifunction knob.



Benefits

Multi-function flexibility

Axitom is ideal for cutting the hardest materials and sectioning of large workpieces. It features four programmed MultiCut modes, one of which interacts with the built-in database function to enable fast, productivity-enhancing changes between cutting methods.

Easy to use

The robust joystick is designed for production environments and can be moved in three different axes to control the cut-off wheel and both the X- and Y-tables. The Multifunction knob is used for setting all cutting parameters, and can be operated even with work gloves. A large graphical display with a resolution of 640 x 480 pixels enables display of all cutting parameters at a single glance, even at a distance.

Easy machine care

AxioWash* is an automatic chamber cleaning function that can be used every day to keep the machine in optimal working condition. All it requires from the user is cleaning of the horizontal surfaces.



Used in these industries:

      • Automotive
      • Aerospace
      • Electronics
      • Manufacturing
      • Education & Research

Discover more

Magnutom

Play



KEY FEATURES THAT ENABLE EASY CUTTING OF HARD MATERIALS AND LARGE WORKPIECES ON THE PRODUCTION FLOOR

  • Axitom ExciCut Play

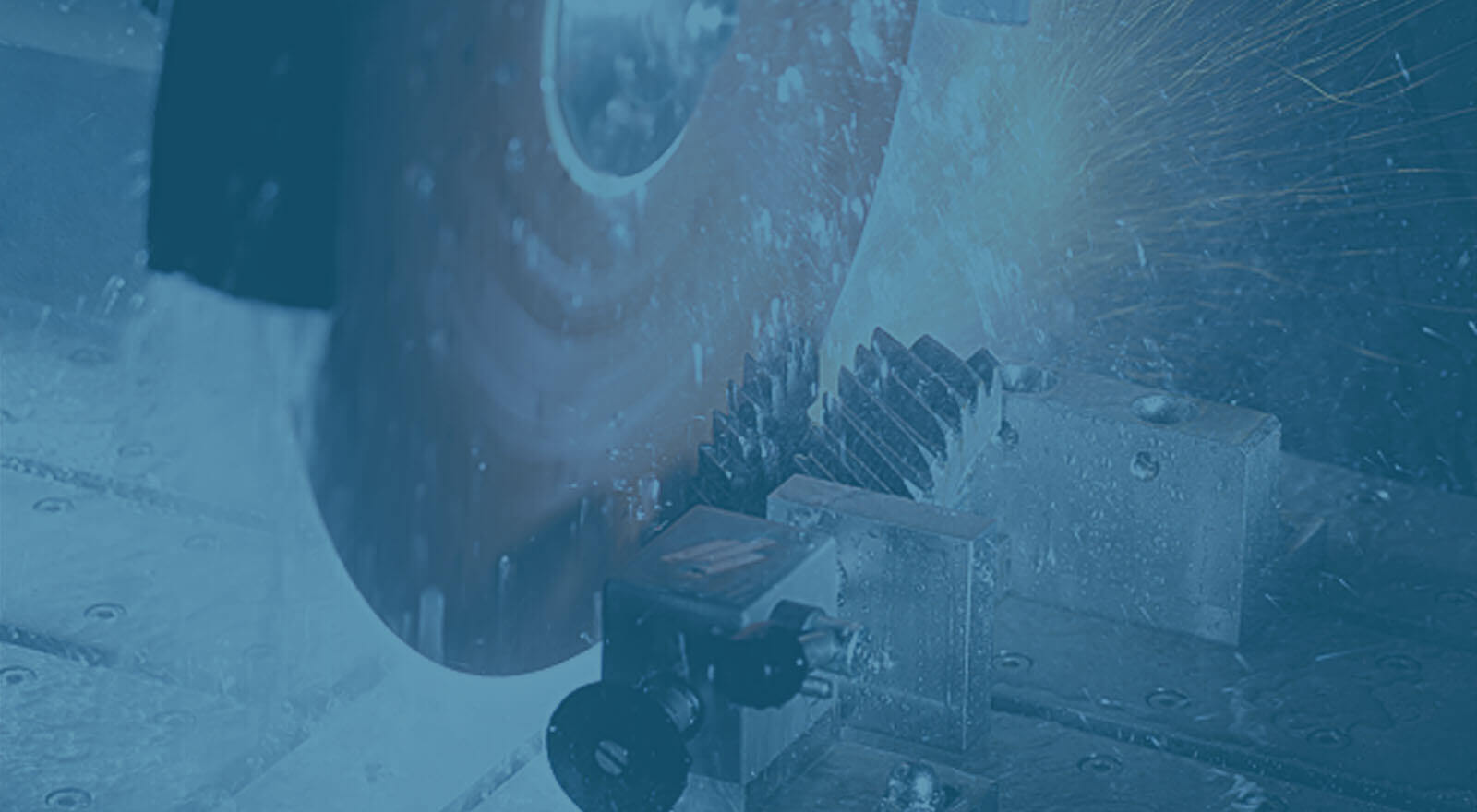

    ExciCut – cutting of the hardest materials

    ExciCut uses an oscillating movement of the cut-off wheel to reduce the contact area between the cut-off wheel and workpiece. This enables cutting of very hard materials in very large sizes, and also the use of harder cut-off wheels, which increases the lifetime of the wheels, thus reducing costs.


  • Axitom AxioCut Step

    AxioCut – sectioning of extra-large workpieces

    AxioCut adds 150 mm cutting capacity for extra-large workpieces. The field-upgradable option includes Step cutting for very fast cutting, combined with better wheel economy.


  • Axitom Direct Cut

    DirectCut

    Classic cutting mode, where the cut-off wheel moves straight down into the workpiece using the preset feed speed.


  • Axitom MultiCut

    MultiCut

    Automatic serial cutting


  • Axitom OptiFeed

    OptiFeed – intelligent feed control

    OptiFeed optimizes the feed speed without sacrificing the quality of the cut or good wheel economy. During cutting, Axitom continuously measures the load on the cutting arm. As soon as the preset force limit is reached, the feed speed is reduced to avoid damage. The feed rate is increased again once the force decreases again.


  • Axitom AxioWash

    AxioWash*

    Struers' patented* automatic chamber cleaning function that can be used every day to keep the machine in optimal working condition. * AxioWash is protected under EP Pat no. 1965947.


  • Axitom Database function

    Database function

    Storage of up to ten cutting methods


  • Axitom Spacious cutting chamber with LED lighting

    Spacious cutting chamber with LED lighting

    Easy access and visibility


  • Axitom User-friendly operation

    User-friendly operation

    With three-axis joystick and multi-function knob


  • Axitom Spacious cutting chamber

    Spacious cutting chamber

    Largest cutting table in its class


  • Axitom Adjustable cutting table

    Two automatic cutting tables

    X-table for cutting of parallel sections Y-table for extra deep workpieces


  • Axitom Large graphical display

    Large graphical display

    All information - at a single glance



Facts

            • Model types
            • Technical Data

Axitom-5

Axitom-5 automatic cutoff machine

Axitom-5
Automatic cut-off machine with ExciCut, AxioCut Step, MultiCut, Direct Cut, and OptiFeed.
With automatic X-table and automatic Y-table. 5.5 - 6.5 kW motor. For 350 mm dia. cut-off wheels.
Cooling unit, drain, and clamping tools have to be ordered separately.



Technical Data



Axitom-5 Technical Data Sheet



Struers Technical Data Sheets are designed to help you make the best choice of equipment for your particular purpose. You can find important information such as capacity and performance specifications, dimensions, weight, electrical data, noise levels, ambient conditions, and safety. In many cases you can also obtain an overview of accessories offering higher capacity and performance.

Download Technical Data Sheet



Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards.
Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.
