Magnutom

Magnutom-400/-500

Automatic, high capacity cutting in the lab and on the production floor

Magnutom facts

  • Automation
  • Flexibility
  • Rugged design
  • Method Database
  • Extraordinary wheel cooling
  • Exceptional access for easier handling
  • 432 mm (17”) or 508 mm (20”) diameter cut-off wheel size

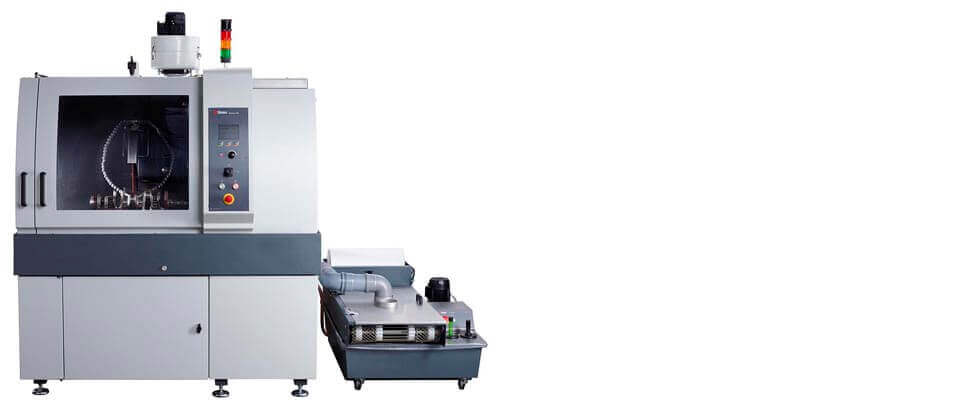

Magnutom is a high capacity, easy-to-use, automatic cut-off machine
that delivers constant powerful cutting and long-term durability, making
it ideal for both the production floor and laboratory. The extra-large
cutting table, large cut-off wheel, powerful DirectDrive motor, and
efficient cooling ensure precise and efficient cutting of large and oversized
workpieces.

Benefits

Huge capacity – small footprint

Magnutom is designed to deliver high capacity cutting without compromising valuable floor space. With a compact and streamlined footprint of just 2.6 m2, Magnutom has the largest cutting table in its class. The left-hand cutting table on the fixed table version can be removed for additional space.

Maximum uptime – minimum maintenance

Magnutom can withstand tough conditions, as all machine parts are CAE-stress tested to ensure that they can withstand continuous cutting. The straightforward design, robust frame, oversized machine parts, and DirectDrive beltless transmission ensure maximum efficiency and operation.

Easy to use

Intuitive, icon-based user interface, automatic programming, multifunction knob, and joystick control makes the Magnutom user-friendly. The user friendliness allows for quick training and operation, thus reducing the time needed to acquire high quality specimens.

Used in these industries:

  • Automotive
  • Aerospace
  • Electronics
  • Manufacturing
  • Education & Research

Cutting with Magnutom

Magnutom video preview


KEY FEATURES THAT ENABLE HIGH CAPACITY AND HIGH PRECISION CUTTING

  • Magnutom High cutting capacity

    High cutting capacity

    High capacity precision cutting is achieved by a powerful motor with a large, fully retractable cut-off wheel and an efficient cooling system. Two-door opening, an extra-large cutting table, and flexible clamping and access make it easy to handle very large workpieces.


  • Magnutom Rugged

    Rugged

    Compact design, robust frame, oversized machine parts, and DirectDrive motor ensure maximum efficiency, reliable operation, and minimal maintenance.


  • Magnutom VarioSpeed

    VarioSpeed

    Optimizes the cutting of difficult sections to ensure speed and quality.


  • Magnutom Four cutting modes

    Four cutting modes

    Offer maximum cutting flexibility


  • Magnutom Extraordinary wheel cooling

    Extraordinary wheel cooling

    Cooling nozzles on both sides of the wheel ensure that the coolant is dispensed as close to the specimen as possible, allowing optimal cooling at any time. Two flexible water jets are provided for supplementary cooling.


  • Magnutom Exceptional access for easier handling

    Exceptional access for easier handling

    Easy access to machine parts and for handling large workpieces. Smart, sliding, and hinged doors open to give more space and unrestricted access for smoother loading and better placement of large workpieces.


  • Magnutom OptiFeed

    OptiFeed

    Ensures the correct feed speed without compromising cut quality or wheel economy.


  • Magnutom AxioWash

    AxioWash

    Struers' patented* automatic chamber cleaning function that can be used every day to keep the machine in optimal working condition. * AxioWash is protected under EP Pat no. 1965947.


  • Magnutom AutoCut

    AutoCut

    Cut-off wheel automatically moves to predefined start position – faster cutting of uniform samples.


  • Magnutom ExciCut

    ExciCut

    Speeds up cutting of very hard materials.


  • Magnutom Method Database

    Method Database

    Store up to 300 cutting methods for easy retrieval.


  • Magnutom Cutoff wheel database

    Cut-off wheel database

    Magnutom suggests the optimal Struers’ cut-off wheel and recommended rotational speed based on material hardness


  • Magnutom MultiCut

    MultiCut

    For serial cutting any of four programmed MultiCut modes can be used, one of which interacts with the built-in database function to enable fast, productivity-enhancing changes between cutting methods.


  • Magnutom Count down timer

    Count-down timer

    Displays the estimated time to completion


  • Magnutom Cutoff wheel size

    Cut-off wheel size

    432 mm dia. (Magnutom-400) or 508 mm dia. (Magnutom-500).



Facts

Model types

Magnutom is available in two versions. See specifications for details.

Magnutom-400

Magnutom-400

 Magnutom-400 with fixed tableAutomatic cut-off machine for 432 mm (17”) cut-off wheels. Motor with variable spindle speed.With ExciCut, AxioCut, and OptiFeed. Fixed cutting table. Band filter recirculation cooling unit and clamping tools are ordered separately.



Magnutom-400 with automatic X-table Automatic cut-off machine for 432 mm (17”) cut-off wheels. 15-20 kWmotor with variable spindle speed. With ExciCut, AxioCut, and OptiFeed. Automatic X-table Band filter recirculation cooling unit and
clamping tools are ordered separately.

Magnutom-500

(Magnutom-500).

Magnutom-500 with fixed table

Automatic cut-off machine for 508 mm (20”) cut-off wheels. Motor with variable spindle speed. With ExciCut, AxioCut, and OptiFeed. Fixed cutting

table. Band filter recirculation cooling Unit and clamping tools are
ordered separately.





Magnutom-500 with automatic X-table

Automatic cut-off machine for 508 mm (20”) cut-off wheels. 15-20 kW motor with variable spindle speed. With ExciCut, AxioCut, and OptiFeed. Automatic X-table Band filter recirculation cooling unit andclamping tools are ordered separately.



Technical Data



Magnutom-400/-500 Technical Data Sheet



Struers Technical Data Sheets are designed to help you make the best choice of equipment for your particular purpose. You can find important information such as capacity and performance specifications, dimensions, weight, electrical data, noise levels, ambient conditions, and safety. In many cases you can also obtain an overview of accessories offering higher capacity and performance.

Download Technical Data Sheet

     Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards.

     Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.
